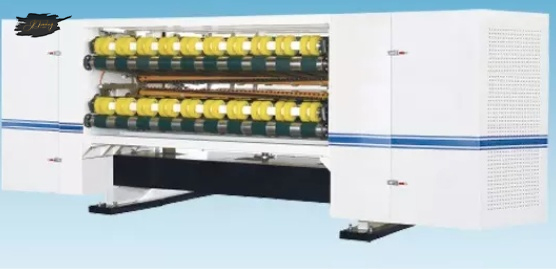

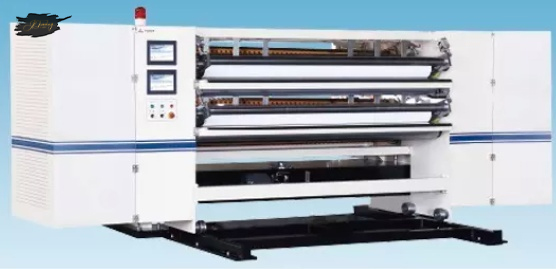

Corrugated Cardboard Production line Helical Knives NC Cutter Off Machine

Description

Corrugated Paperboard Production Line Machine, NC Computerized Cut Off Machine Paper Cutting
I. General introduction
The cut off machine is used to cut the paperboard / sheet. Mostly match with corrugated cardboard production line. Also have stand alone machine.
Regarding the online cut off machine, it has two types: Straight knife cut off and Helical knife cut off. Straight knife cut off machine suitable to the lower speed production line while the helical knife cut off suitable to the high speed production line.
Both of them can make frequency inverter driving type and NC servo motor driving type. Frequency inverter type is more economical and energy saving. NC servo motor type has higher precision and speed.
III. Functions and characteristics
1. With single or double layers structure for choice.
2. Colorful touch screen display all kinds of production information which can be checked, revised ,added or canceled.
3. Special structural design, particularly well mechanical strength wall and base.

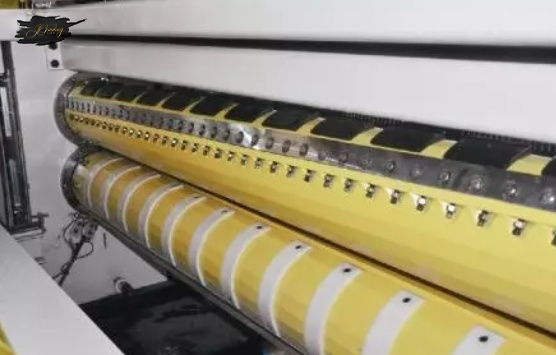

4. Special high-speed helical cutter for cutting cardboard smooth without burr.
5. Blade adjustment and changing design, fast and convenient.
6. Drive box adopts oil pump type high precision gear drive with low noise, steady.
7. AC servo motor driven cutting, high efficiency, high precision.
8. Transport out of paper using an independent variable frequency motor drive, and line speed synchronization.
9. AC servo control system, energy saving 30%.
10. Computers can store multiple sets of orders,changing orders automatically with non-stop, and to achieve computing network to facilitate the production management.
11. Cutting length range ;500-9999mm; Cutting accuracy; ± 1mm.
12. The speed : 50-130m/min
13. Valid breadth:1400mm-2500mm.
