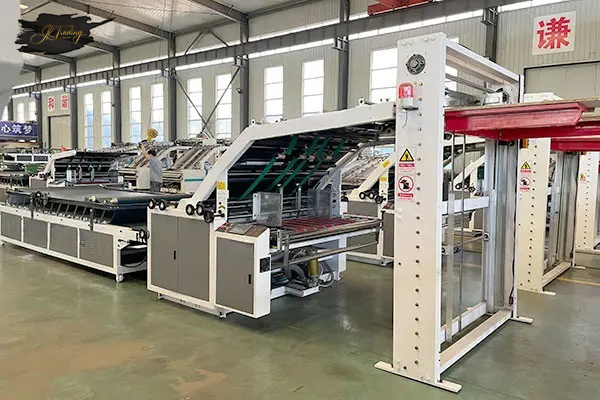

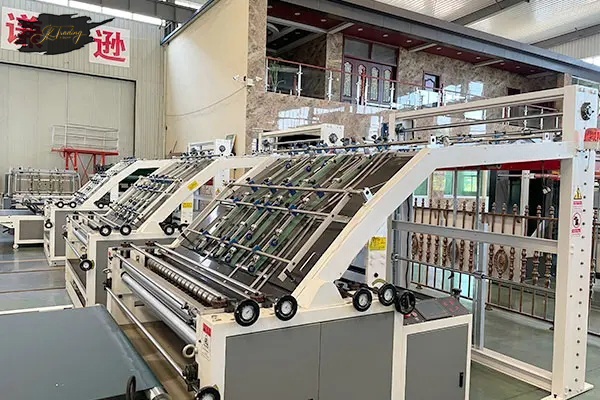

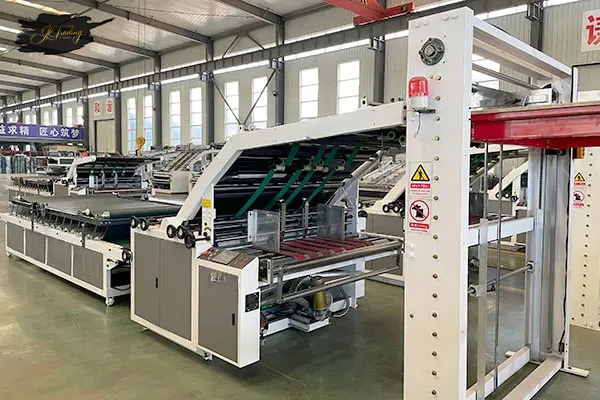

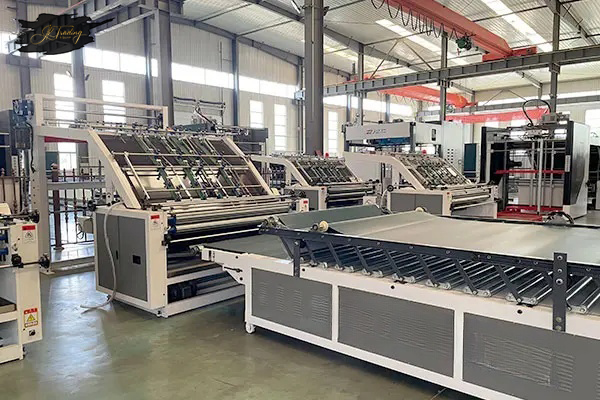

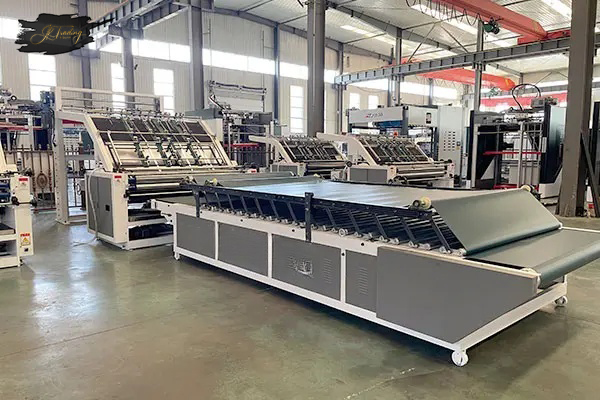

BZJ-Q3 SERIES SEMI-AUTO FLUTE LAMINATOR MACHINE

Description

MACHINE DESCRIPTION

Suction feed the bottom board, running is balance and accurate. Photoelectric control to avoid single – sheet walking. The machine adopts forward push position: the error range is within 1.0mm, and the fitting error range of corrugated paper is within 1.5mm.machine body 20mm thickness, some important part 40mm

MACHINE FUNCTION

1. The machine is easy to clean by lifting bridge board. Intermittent water cycle cleaning system, easy to clean
2. The top paper can be stacked up to 1.5 meters at a time. The paper pile rises automatically during the paper feeding process, making paper feeding easier and more efficient.
3. Elastic front rule position, the bottom board does not go fast, and the bottom board and the top face paper laminating position can adjust.
4. The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm)
5. Intelligent control the conveyor unit, power saving and control paper distance
6. Adopt high precision glue control device to save glue
