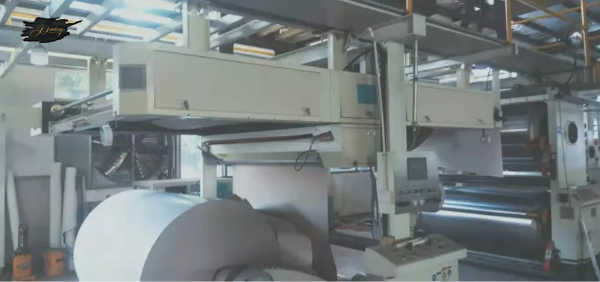

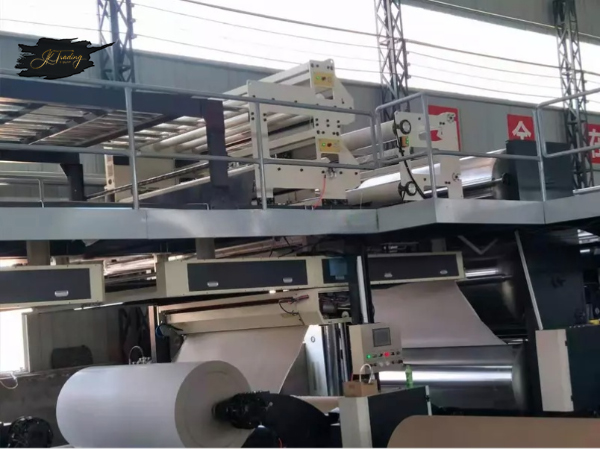

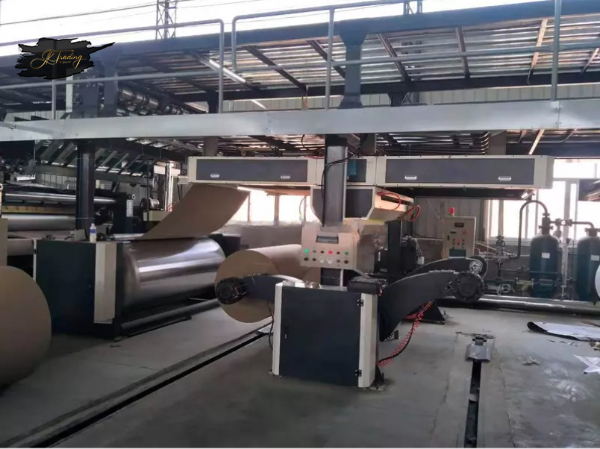

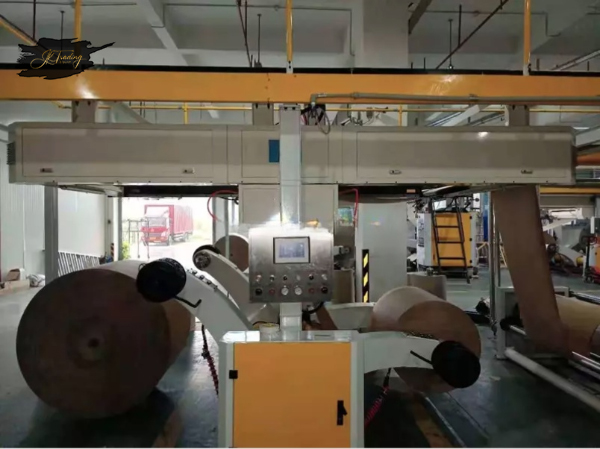

Corrugation Paperboard Production Line Raw Paper Automatic Splicer Machine

Description

Technical Parameters
Paper-splicing Speed: 0-150M/min ( in accordance with the paper quality)
Paper-splicing time: about 1 second
Running speed: 0-200M//min
Applicable paper weight: 90-320g/m2
Max diameter of roll paper: Φ1500mm
Working pressure: 0.6-0.9MPa
Double-faced adhesive belt width: 30mm
Structural Features
*PLC control system ,man-machine interface operation.
*Success rate of paper-splicing is above 99%
*Adopts magnetic powder clutch to control automatically.
*Buffer roller walking by the way of chain drive
*Zero paper tail splicing, there is only 3cm adhesive sticker bonding part between the new and old paper.
*Clamp stick and tooth shape cutter adopts integrated construction, which can simultaneously finishing the splicing and cutting operation.
Material
*Cylinder, solenoid valve, pressure regulating valve, oil and gas separator: AIRTAC from Taiwan .
*Button, contactor, indicator light : CHINT or DELIXI made in China
*Gear motor speed ratio 1:60 power 0.75KW , Domestic famous brand
*Bearings : Harbin ,Wafangdian, Luoyang famous brand
*proportional valve : smc
*The cutter is made of high quality alloy steel , never need to change.( except man-made damaged )
