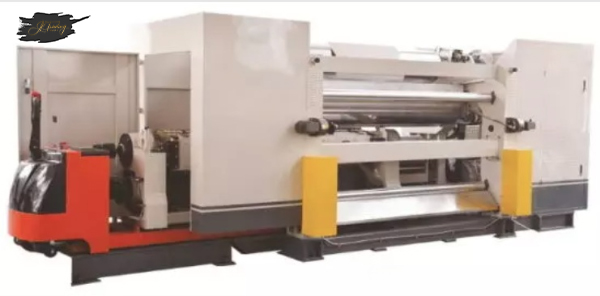

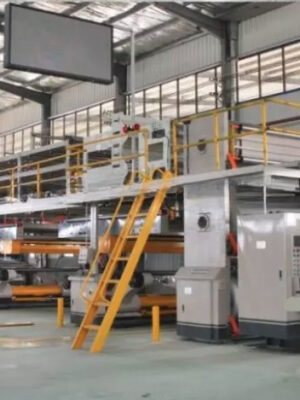

Corrugated Cardboard Plant Vacuum Cassette Fingerless Single Facer Machine

Description

Structural Features:
Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan. With silencer, air supply and electric control focus on the same operation counters, not less than 1.5m away from the main engine, operation side is totally closed and full guarding.
Engine base and wall plate: iron casting structure, thickness of the wall plate: 150mm, adopt independent speed changing box, and gimbal transmission.

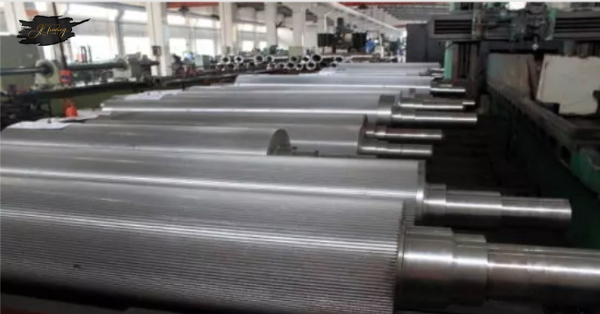

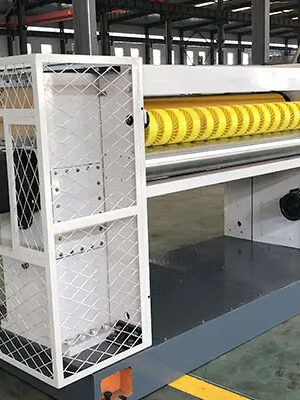

Diameter of main corrugated roll: ¢320mm, and are made of 45# steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding, the rigidity of surface is higher than HRC58. Corrugated roll and pressure roll of pivotal section adopt heat resisting bearings which are manufactured by TWB
Pressure roll diameter: ¢320mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 45# medium carbon steel, hardening and tempering

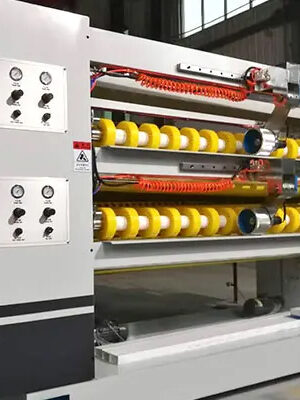

Glue wall plates adopt sliding structure, pneumatic control glue supply and glue back, diameter of the applicator glue roll : ¢242mm, surface are treated by polished and chrome plated.
Press roll adopt ¢160 cylinder
Pre-heater roll adopt seamless steel pipe which is produced by Tianjin Iron & steel group co,.ltd. Diameter ¢400mm, are all connected with metal soft pipe.
