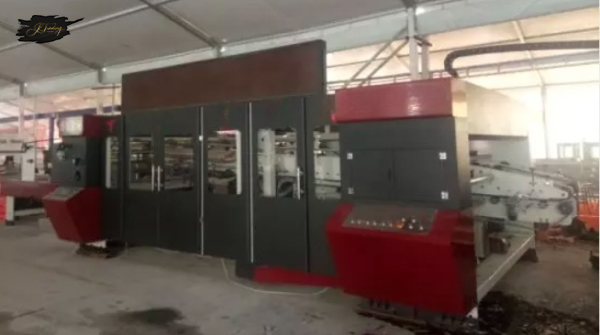

Automatic bottom folding gluing with flexo printing slotting die-cutting and auto bundling machine

Description

Automatic bottom folding gluing with flexo printing slotting die-cutting and auto bundling machine

Automatic down-side folding and gluing , attached and Synchronized with automatic printing die-cutting machine and automatic bundling machine. High speed and efficiency.

Automatic down-side folding and gluing , attached and Synchronized with automatic printing die-cutting machine and automatic bundling machine. High speed and efficiency. Can save 7-8 labors and save the factory space. Easily achieve per hour produce 10000 ready cartons.

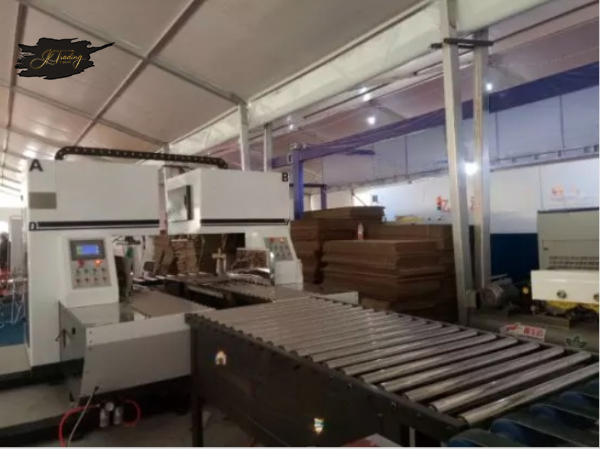

Machine consists of three part which is board feeding part , gluing & folding part and counting stacking part . Speed adjustment can be done by touch screen and remote.
It adopt 4 times of scoring and correction parts to make sure paper feeding high accuracy.

Machine is frequency conversion control, with imported drive. Touch screen display the running data and can do order change easily from touch screen. After input new order size, machine can automatically change into needed position , highly increased working efficiency. Different size of carton , quick and convenient to adjust.

Whole machine is heavy duty with high quality bearings, imported electrics, thickness pipes, imported belts.

1. Main components:
1. Lead-edge feeding part one unit

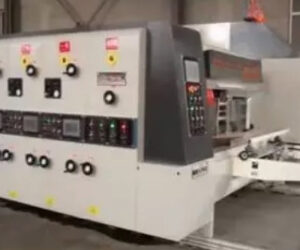

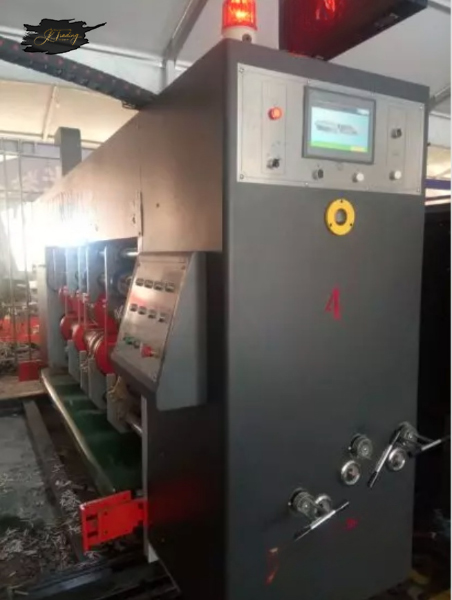

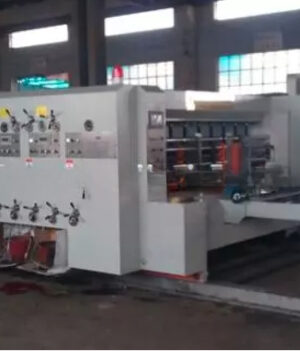

2. Printing part four unit

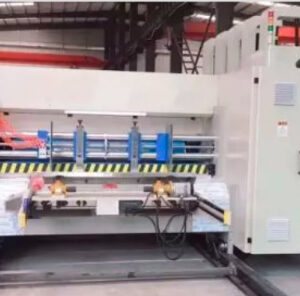

3.Slotter part one unit
3. Die-cutting part one unit

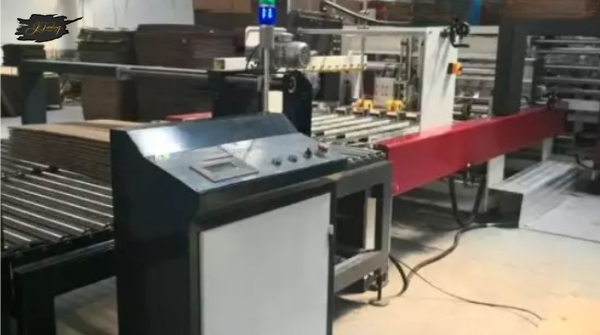

4. Automatic gluing part one unit
5. Bundling part one unit Totally 9 units.
